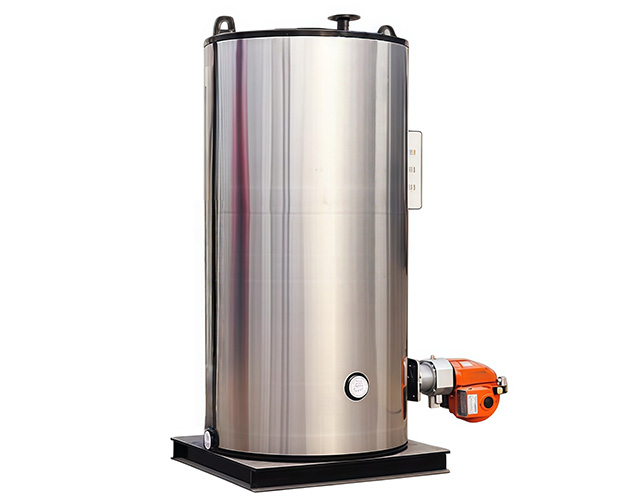

LHS Vertical Steam Generator

Capacity: 0.1-3t/h

Boiler Power: 6.4 to 190 HP

Pressure: 0.4/0.7MPa

Available Fuel: Heavy oil, diesel, natural gas, LPG, etc.

Applications: Widely used in pharmaceutical, chemical, textile, food and beverage, hotel, etc.

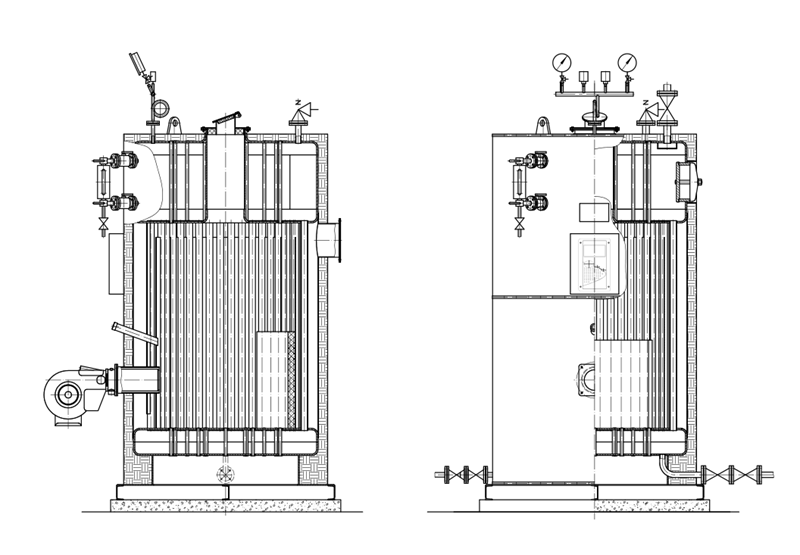

LHS Vertical Steam Generator Brief Introduction

The LHS series steam boiler features a compact vertical fire-tube design with a large combustion chamber for complete fuel combustion. Inserted flue tubes slow gas flow and reduce exhaust temperature. Equipped with a pressure relief valve, water level controls, and pressure gauge, it ensures stable, reliable steam production. With fast steam generation, low fuel consumption, high steam quality, and ample heating surfaces, it delivers excellent thermal efficiency. Ideal for small industrial applications, including food processing, manufacturing, and hospitality.

Note: Optional Dual-Fuel Steam Generator (Oil/Gas & Biomass)

Features of Oil Gas Steam Generator

1. Suitable for natural gas, LPG, light diesel and other clean fuels.

2. Small footprint, factory pre-installed, easy and fast installation.

3. One-button start with automatic control and alarm functions; supports unattended operation.

4. Six-level interlock protection for safe and reliable running.

5. Manufactured with certified boiler-grade steel and strict quality inspection.

6. Advanced steam-water separation design with steam dryness up to 97%.
