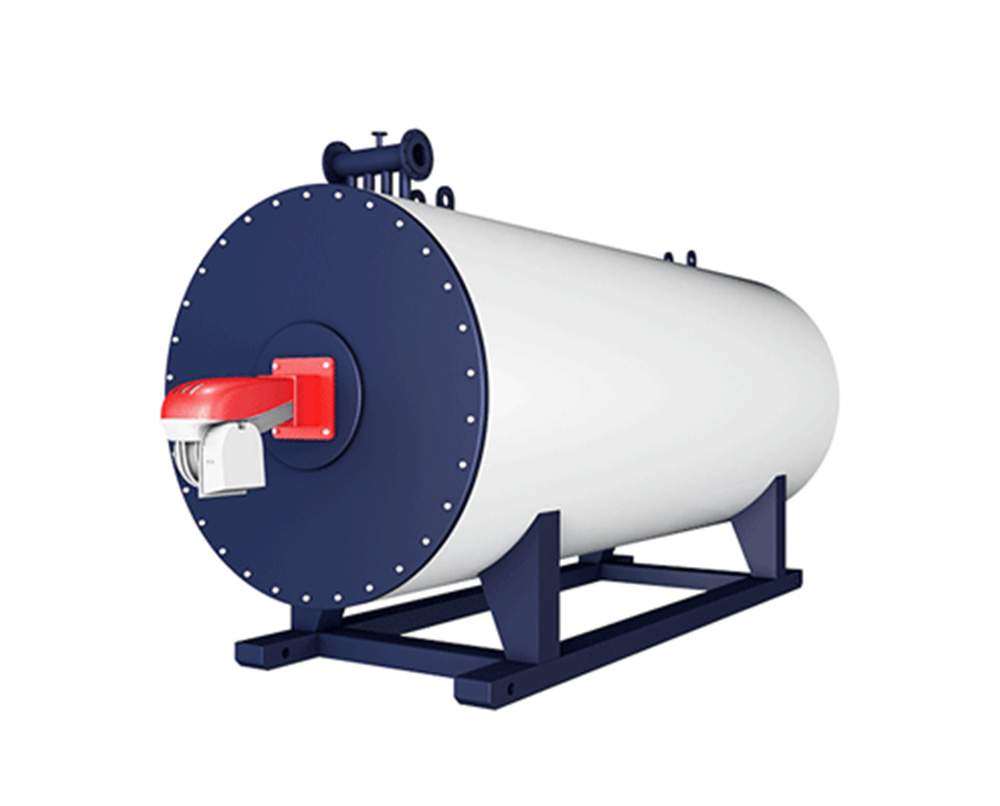

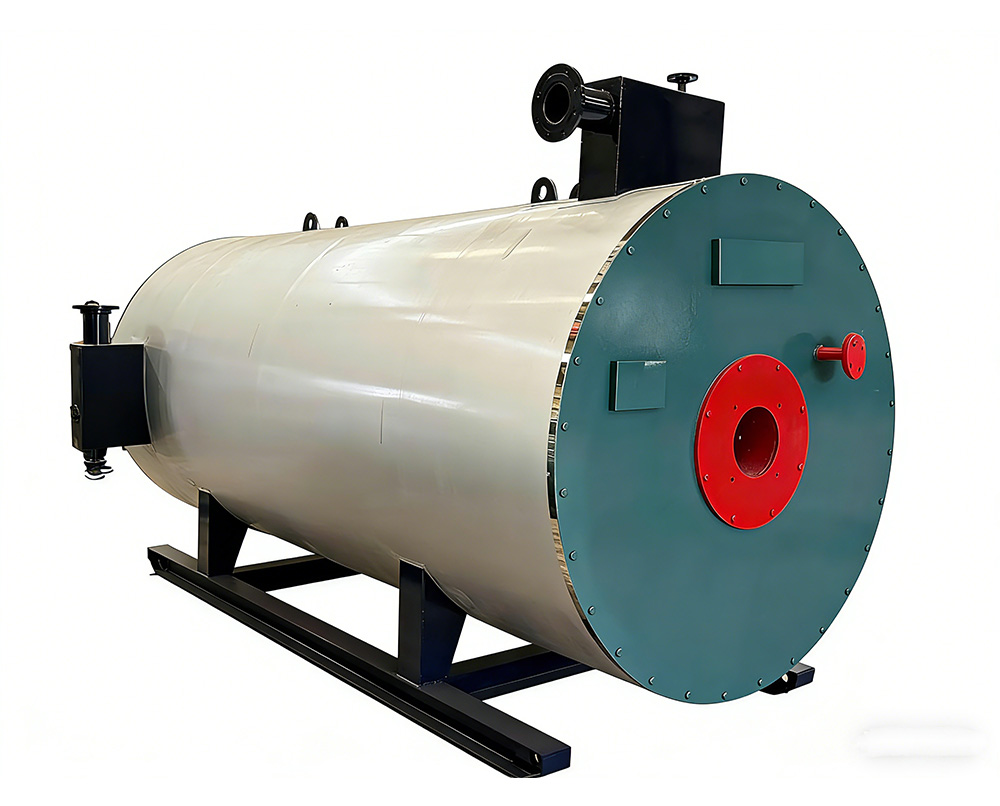

YYQW Thermal Oil Boiler (Thermic Fluid Heater)

Rated power : 350~14000kw

Pressure : 0.6~1.1Mpa

Fuel : Heavy oil, diesel, natural gas, LPG, etc.

Working Temperature: ≤350℃

Gas/Oil Fired Thermal Oil Boiler is also called thermic fluid heater or hot oil boiler, which is an safe and energy saving boiler with working characteristics of low working pressure (0.8 MPa) and high temperature (330℃). This thermic fluid heater uses gas or oil as fuel, thermic oil as medium, hot oil circulation pump to make the medium to forced circulation, deliver the heat to heating need equipments and then go back to the heating furnace.It can obtain a high  operating temperature at  low pressure and can do high-precision control on the medium. TaiGuo Boiler has a mature R&D and design team, could customize the boilers based on customers’ requirement.

Advantages

1.It is easy and convenient to install the boiler, only setting the boiler on the foundation.

2. Heating surface formed by round coils, reducing thermal load of tubes surface, ensure safety.

3. Furnace dimensions matching with combustion flame, positive pressure combustion,high radiation heat efficiency.

4. Coil pipe, thermal oil boiler structure is compact, saving the floor area of boiler room.

5. An air pre-heater or heat recovery boiler is placed behind the boiler to improve the thermal efficiency.
